Portable Mobile Barcode Printer

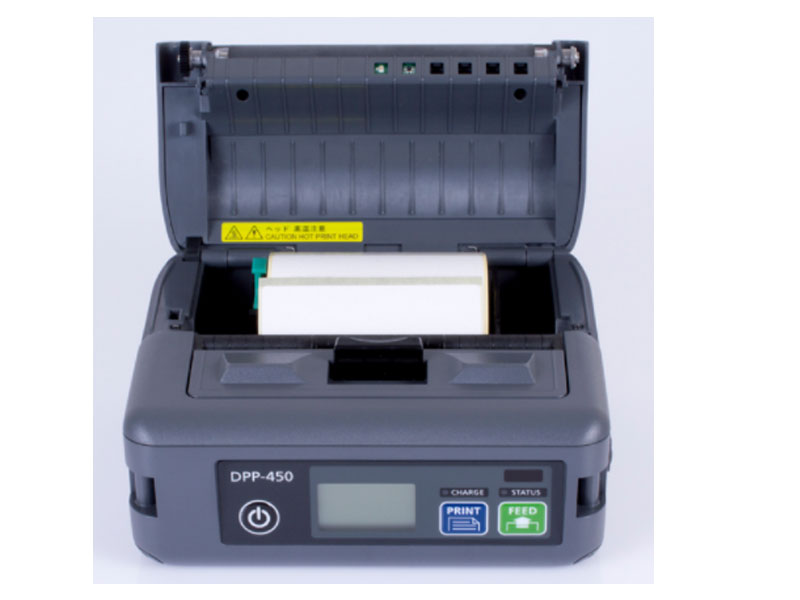

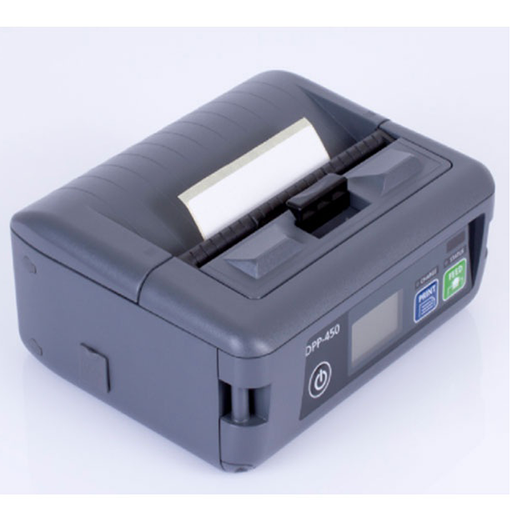

Mobile Printer DATECS DPP-450
Printing Mechanism
Direct line thermal printer
Printing Width
104 mm (832 dots)
Printing Resolution
203 x 203 dpi (8 x 8 dpmm)
Printing Speed
Max 150 mm per second
Printable Font Sizes
Font A - 12 x 24 dots (48 characters per line)
Font B - 9 x 16 dots (64 characters per line)
Loadable Font Sizes
Font C - 12 x 24 dots (48 characters per line)
Font D - 9 x 16 dots (64 characters per line)
Printable Logo
1 Black and White (832 x 248 dots)
Printable Barcode Types
1D: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, Interleaved 2 of 5, Codabar, Code 93
2D: PDF417, QR Code
Paper Type
Label rolls
Paper Width
50 to 115 mm
Paper Thickness
59 to 154 μm
Roll Max Diameter
58 mm
Paper Loading
Easy paper loading
Paper Sensor
Black Mark
Label Gap
Post Printing Features
Label peeler
Operator Display
128 x 64 px Monochrome LCD
Backlight
Emulation
ESC/POS
EPL
ZPL2
Connectivity
RS-232C port (max 115200bps )
mini USB 2.0 port (device)
Bluetooth 2.0 class 2 (Serial Port Profile) (optional)
Bluetooth 3.0 class 2 (Serial Port Profile, iPod Accessory Protocol) (optional)
Wireless LAN 802.11b (optional)
- BSS and IBSS network mode
Infrared port
OS Compatibility
Windows, Android, iOS
LED Indication
Battery low
Battery charging
Paper end
Cover open
Overheating
Audio Features
Electromagnetic buzzer
Keyboard and Buttons
On/Off button
Feed button
Print button
Contactless Card Reader
MiFARE Mini
MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO / IEC 14443 A
ISO / IEC 15693
FeliCa
Power Supply
AC 100 to 240 V, 50 to 60 Hz, DC 19 V, 5.2 A
Battery
Rechargeable Li-Ion battery 14.4 V, 2200 mAh
2.5 hours charging time
20 000 lines with one charge
Reliability
15 million lines (Mechanism)
50 km (Thermal head)
Certificates
CE
Dimensions (W x D x H)
157 x 138 x 67 mm
Weight
785 g
Operational temperature range
-15 to 50 °C, 30 to 85 % RH
Storage temperature range
-20 to 60 °C, 10 to 90 % RH
Drop Tested
1 m, 3 times, all sides on concrete
Compatible Accessories
Holster
Belt clip
Shoulder strap
Battery charger
Vehicle stand
